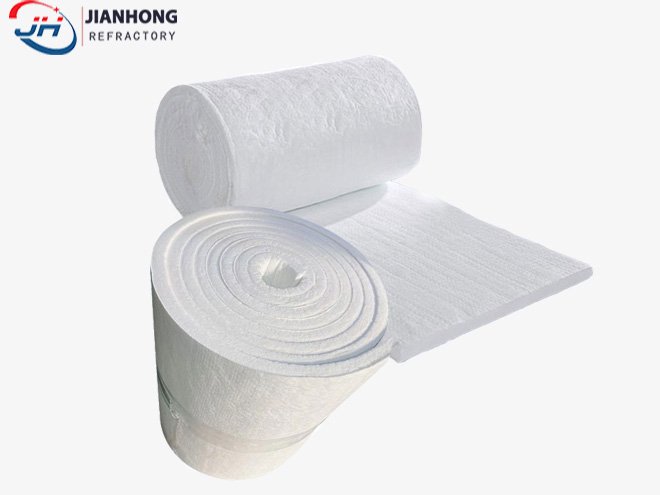

Ceramic fiber blanket
- Al2O3≥: 40%~72%
- Refractory temperature (℃): 1000~1600℃
- Bulk Density (g/cm³): 96~160
- Material: Aluminum silicate or customized
- Standard Size: 7200*610*10-50mm or customized
- Certification: ISO9001/ISO14001/ISO45001/ISO50001
- Samples: Provide you free samples for testing
Custom Ceramic Fiber Blanket Manufacturer
The classification of ceramic fiber blankets is primarily based on their chemical composition, performance characteristics, and application scenarios. The common categories are as follows:
Standard Type Ceramic Fiber Blanket
- Basic Composition: Mainly made of alumino-silicate (Al₂O₃ + SiO₂ ≥96%), with Al₂O₃ at 44%-46% and SiO₂ at 45%-55%, plus small amounts of fluxing agents like Fe₂O₃ and CaO.
- Structure: Primarily mullite and glass phases, with fiber diameters of 3–5μm. Forms a porous network structure with porosity >95% and low thermal conductivity.
- Applications: Used in medium-temperature environments such as heating furnaces in metallurgy, boiler linings, and high-temperature pipe insulation.
Polycrystalline Mullite Fiber Blanket
- Chemical Composition: Al₂O₃ ≥72%, SiO₂ about 25%–28%, forming a mullite (3Al₂O₃·2SiO₂) crystal structure.
- Features: Stable crystal phase, long-term use above 1600°C, excellent thermal shock resistance, low shrinkage at ultra-high temperatures.
- Applications: Used in aerospace insulation, high-temperature nuclear equipment, and advanced ceramic sintering kilns.
Biosoluble ceramic fiber blanket
- Chemical Composition: Mainly composed of MgO, CaO, and SiO₂ (e.g., MgO-CaO-SiO₂ system), slowly dissolvable in body fluids.
- Features: Lower heat resistance (long-term use at 600–800°C), environmentally friendly, non-toxic, but lower in strength and corrosion resistance.
- Applications: Temporary insulation, special insulation in medical fields, and short-term thermal protection in industries with strict environmental requirements (different from standard types).

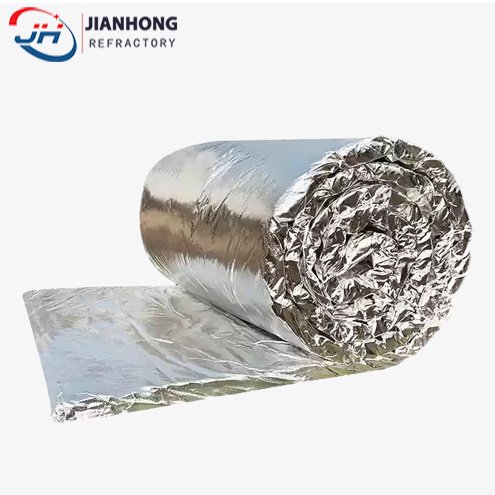

Ceramic fiber blanket with foil
- Features: Surface coated with metal foil (e.g., aluminum foil, stainless steel mesh) to enhance tear resistance, moisture protection, and heat reflection.
- Applications: Used for high-temperature pipe cladding and insulation of industrial equipment requiring wind or water resistance.
Chrome-containing ceramic fiber blanket
- Chemical Composition: Al₂O₃ about 46%–48%, SiO₂ about 50%–52%, added Cr₂O₃ (3%–5%).
- Features: High temperature resistance (1000–1200°C), excellent resistance to reducing atmospheres (e.g., CO, H₂) and molten metal corrosion. Chromium improves oxidation resistance and chemical stability.
- Applications: Used in blast furnaces, non-ferrous metal smelting furnaces, and coal gasification furnaces with reducing gases or molten slag.
Zirconium-containing ceramic fiber blanket
- Chemical Composition: Al₂O₃ about 38%–40%, SiO₂ about 52%–54%, with added ZrO₂ (15%–17%).
- Features: Significantly improved high-temperature resistance (1300–1600°C), low thermal conductivity, strong thermal shock resistance and slag resistance due to zirconia's crystal stability.
- Applications: Used in petrochemical cracking furnaces, high-temperature zones of ceramic kilns, and aerospace insulation components.
Why choose Jianhong Refractory?
If you’re in search of the finest Ceramic Fiber Blanket for optimal solutions to serve your clients, look no further than Jian Hong Refractory. Our meticulous practices ensure the delivery of top-tier Ceramic Fiber Blanket.
Low MOQ
Jian Hong Refractory offers flexible production, accommodating orders from 1 to 10,0000 units on demand.
Fast delivery
Our mature production line facilitates 24/7 operations, enabling rapid turnaround and prompt delivery.
Competitive Price
We guarantee the most competitive prices while maintaining the highest quality standards compared to other suppliers.
Expert Production

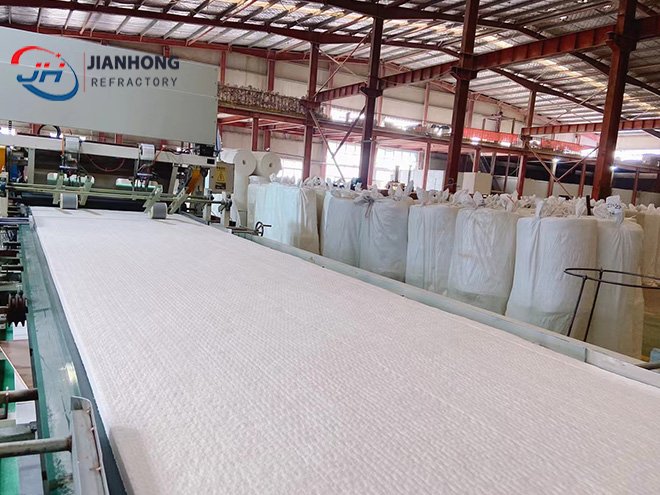

Equipped with three modern production lines, our facilities ensure consistent quality and timely delivery, setting us apart from others in the industry.
Satisfaction Assurance
With a focus on refractory product quality and clear communication, we ensure that every step is streamlined for the ease and satisfaction of our clients.
Comprehensive Product Range
Beyond high alumina bricks, our portfolio includes castables, insulation bricks, ceramic fiber products, and refractory raw materials, providing a one-stop solution unlike competitors with limited ranges.
1 Refractory Raw Materials
2 Crushing and Grinding
3 Screening and Mixing
4 Formulation and Batching
5 Molding and Shaping
6 Drying
7 Pre-Firing Inspection
8 Firing in Kiln
9 Firing Completed
10 Final Quality Inspection
11 Packaging
12 Transport and Delivery
The Ultimate Buyer’s Guide: How to Purchase Ceramic Fiber Blanket
Are you in the market for Ceramic Fiber Blanket ? Look no further.
This all-inclusive buyer’s guide provides you with crucial insights into Ceramic Fiber Blanket, which find applications in metallurgical industry, power industry, ceramic industry, chemical industry and other heat treatment high temperature industries. Whether you’re contemplating importing them for your projects or planning local distribution, this guide furnishes invaluable information to guide your decision-making process.
Chapter 1
What is Ceramic Fiber Blanket?
Ceramic Fiber Blanket is a lightweight refractory insulation material made primarily from alumino-silicate through high-temperature melting and fiberizing processes. Its unique porous structure provides excellent high-temperature resistance, low thermal conductivity, and superior thermal shock resistance. Widely used in industrial kilns, fireproof construction, and energy equipment, it helps customers achieve efficient thermal insulation, energy savi.
Chapter 2
Features of Ceramic Fiber Blanket
1. Outstanding Heat Resistance
Rated for 1000°C to 1600°C, suitable for both standard and extreme high-temperature use.
Zirconia type withstands 1350°C long-term with <3% shrinkage.
Low thermal conductivity (0.16 W/m·K at 1000°C), 40% better insulation than fire bricks.
2. Lightweight and Energy-Saving
Just 1/3 the density of rock wool (60–120 kg/m³), reducing load and transport cost.
Soft, cuttable, fits complex shapes—cuts installation time by 50%.
Asbestos-free, REACH-compliant, 60% less dust than traditional refractories.
3. Versatile and Customizable
- 7 material types including standard, high-purity, and zirconia for tough conditions.
- Custom options: needling, stitching, and foil/glass cloth facing for added strength and protection.
Chapter 3
Specifications of Our Ceramic Fiber Blanket
| Main Performance | Unit | JH-1000 Blanket | JH-1260 Blanket | JH-1425 Blanket | JH-1500 Blanket | JH-1600 Blanket |
|---|---|---|---|---|---|---|
| Classification Temperature | ℃ | 1000 | 1260 | 1425 | 1500 | 1600 |
| Room Temp. Performance (23℃/50% RH) | ||||||
| Color | - | White | White | White | Light Green | White |
| Specific Gravity | g/cm³ | 2.7 | 2.7 | 2.7 | 2.7 | 3.2 |
| Melting Point | ℃ | 1760 | 1760 | 1760 | 1760 | – |
| Average Fiber Diameter | μm | 2.8 | 2.8 | 2.8 | 2.8 | 3.1 |
| Tensile Strength (128kg/m³, ASTM E868-76) | kPa | 40 | 80 | 80 | 80 | 103 |
| Shot Content (≥0.212mm, %) | % | 10 | 7 | 7 | 7 | Trace |
| High temperature performance | ||||||
| Permanent Linear Shrinkage (24h Insulation, 128kg/m³) | % | ≤2 （900℃） | ≤2 （1100℃） | ≤2.5 （1300℃） | ≤3.5 （1400℃） | ≤1 （1600℃） |
| Thermal Conductivity (ASTM C-201) | ||||||
| Bulk Density: 96kg/m³ | ||||||
| Thermal Conductivity at 200℃ | W/(m·K) | 0.06 | 0.06 | 0.06 | 0.06 | – |
| Thermal Conductivity at 400℃ | W/(m·K) | 0.1 | 0.1 | 0.1 | 0.1 | 0.08 |
| Thermal Conductivity at 600℃ | W/(m·K) | 0.18 | 0.18 | 0.18 | 0.18 | 0.13 |
| Thermal Conductivity at 800℃ | W/(m·K) | 0.27 | 0.27 | 0.27 | 0.27 | 0.19 |
| Thermal Conductivity at1000℃ | W/(m·K) | – | 0.36 | 0.36 | 0.36 | 0.27 |
| Thermal Conductivity at 1200℃ | W/(m·K) | – | – | – | – | 0.39 |
| Bulk Density: 128kg/m³ | ||||||
| Thermal Conductivity at 200℃ | W/(m·K) | 0.05 | 0.05 | 0.05 | 0.05 | – |
| Thermal Conductivity at 400℃ | W/(m·K) | 0.09 | 0.09 | 0.09 | 0.09 | 0.08 |
| Thermal Conductivity at 600℃ | W/(m·K) | 0.15 | 0.15 | 0.15 | 0.15 | 0.12 |
| Thermal Conductivity at 800℃ | W/(m·K) | 0.23 | 0.23 | 0.23 | 0.23 | 0.17 |
| Thermal Conductivity at 1000℃ | W/(m·K) | – | 0.3 | 0.3 | 0.3 | 0.24 |
| Thermal Conductivity at 1200℃ | W/(m·K) | – | – | – | – | 0.33 |
| Chemical Composition | ||||||
| Al₂O₃ | % | 42–44 | 44–48 | 34–36 | 43 | 72 |
| SiO₂ | % | 55–57 | 52–56 | 48–50 | 54 | 28 |
| ZrO₂ | % | – | – | 15–17 | – | – |
| CrO₂ | % | – | – | – | 2.8 | – |
Chapter 4
Application of Ceramic Fiber Blanket
1. Industrial Insulation
Kiln Insulation: Used in glass kilns, metallurgical furnaces, and heat treatment linings—reduces heat loss by over 30%.
Equipment Protection: Wraps turbines, boilers, and high-temp pipelines to cut energy waste and safety risks.
2. Building Fire Protection
Firestopping: Fills gaps in cable trays and curtain walls; meets GB/T 25975-2018 fire resistance standards.
Steel Structure Protection: Provides up to 2 hours of fire resistance for enhanced building safety.
3. Energy & Environmental Use
New Energy: Insulates photovoltaic and lithium battery sintering kilns—supports green manufacturing.
Emission Control: Used in RTO incinerator insulation layers to boost heat recovery efficiency.
4. Marine and Transportation Insulation
Engine and Exhaust Insulation: Ideal for ships, trains, and heavy vehicles—reduces surface temperatures, improves fuel efficiency, and ensures safe operation in confined spaces
Chapter 5
Quality Assurance for Ceramic fiber blanket
At Henan Jianhong Refractory Materials Co., Ltd., we are committed to delivering premium-grade Ceramic Fiber Blanket that meet the highest industry standards. Our quality assurance process is designed to ensure each product offers consistent performance, long service life, and maximum thermal efficiency.
The key quality tests typically include:
| Inspection Items | Test Standards/References | Testing Methods | Technical Indicators/Acceptance Criteria |
|---|---|---|---|
| 1. Physical Properties | |||
| - Density | ASTM C1029, ISO 10630 | Gravimetric method | Meets specified density range (e.g., 128-220 kg/m³) |
| - Tensile Strength | ASTM C1185, ISO 12680 | Universal testing machine | ≥ [Specified value] (e.g., 0.25 MPa) |
| - Thermal Conductivity | ASTM C1114, ISO 8302 | Hot plate method / guarded hot plate | ≤ [Specified value] (e.g., 0.09 W/m·K at 500°C) |
| - Flexibility & Brittleness | Internal standard / visual inspection | Bend test / impact resistance test | No cracking or fragmentation under specified bending radius |
| 2. Chemical Properties | |||
| - Loss on Ignition (LOI) | ASTM C838, ISO 3251 | High-temperature furnace heating | ≤ [Specified value] (e.g., 5% at 1000°C for 2h) |
| - Chemical Composition | XRF analysis, ASTM C1285 | X-ray fluorescence spectroscopy | Main components (e.g., SiO₂, Al₂O₃) within specified ranges; impurities ≤ limit |
| - Acid/Alkali Resistance | Immersion test (ASTM C267) | Immersion in standard acid/alkali solutions | No significant degradation or property change |
| 3. Thermal Properties | |||
| - Maximum Service Temperature | ASTM C1029, ISO 19289 | Furnace endurance test | No melting, shrinkage ≤ 5%, or property loss at specified temperature |
| - Thermal Stability | Cyclic heating-cooling test | Repeated heating to max service temperature | Mass loss ≤ 3%, dimensional change ≤ 2% after cycles |
| 4. Dimensional Accuracy | |||
| - Dimensions (Length/Width/Thickness) | GB/T 3003, ISO 6965 | Vernier caliper, ruler | Within ±[Specified tolerance] (e.g., ±1mm for thickness) |
| - Flatness/Warpage | Straightedge test | Visual inspection with straightedge | Warpage ≤ [Specified value] (e.g., 5mm/m²) |
| 5. Appearance Quality | Internal visual inspection standard | Visual check, surface scanning | No visible defects (cracks, holes, impurities, delamination, uneven color) |
| 6. Packaging & Marking | Customer-specific requirements | Visual inspection, documentation check | Packaging intact, labels clear (product name, batch number, specifications, origin, handling warnings) |
Through this meticulous testing process, we ensure that our Ceramic fiber products meet the highest standards of quality, reliability, and performance, making them ideal for various applications in various industries.
Chapter 6
Chapter 7
In Summary
Henan Jianhong Refractory Materials Co., Ltd. is your trusted partner for high-performance ceramic fiber insulation solutions. Backed by over 20 years of industry expertise, we specialize in delivering ceramic fiber products engineered to withstand extreme temperatures and harsh industrial conditions.
Our commitment to precision manufacturing, strict quality control, and fully customizable services ensures every product meets the highest international standards. Whether you’re operating a steel plant, cement kiln, or high-temperature system, we help you achieve maximum thermal efficiency and operational safety.
Partner with us and experience the difference of working with a professional supplier known for product consistency, on-time delivery, and unwavering customer support.
