High Alumina Insulation Bricks (Poly Light Series)

Name: High Alumina Insulation Bricks
Brand: Jianhong Refractory

Henan Jianhong Refractory manufactures High Alumina Insulation Bricks, also known as “Poly Light” bricks. Manufactured using high-grade bauxite clinker and combustible additives (such as polystyrene beads or sawdust), these bricks are fired at 1350°C-1500°C. During firing, the additives burn out, leaving a uniform porous structure (as seen in our product photos).

This structure provides excellent thermal insulation while maintaining the high refractory properties of alumina. They are the ideal cost-effective solution for insulation layers where the ultra-high purity of Mullite (JM series) is not strictly required.

Technical Specifications of High Alumina Insulation Bricks(LG Series)

Classified by Bulk Density (LG-0.5 to LG-1.2).

Item	Specification
	LG-1.2	LG-1.0	LG-0.8	LG-0.7	LG-0.6	LG-0.5
Al2O3 %	≥48
Fe2O3 %	≤2
Bulk Density, g/cm3	≤1.2	≤1.0	≤0.8	≤0.7	≤0.6	≤0.5
CCS, MPa	≥4.5	≥3.5	≥2.5	≥2.2	≥1.6	≥1.2
PLC, %	1400℃×12h ≤-2			1350℃×12h ≤-2		1250℃×12h ≤-2
Thermal Conductivity, W/(m·K) 350±25℃	≤0.55	≤0.50	≤0.35	≤0.30	≤0.25	≤0.20

Custom High Alumina Insulation Bricks

Optimize thermal efficiency with High Alumina Insulation Brick in customizable sizes and shapes, volume density ranging from 0.5 to 1.2 g/cm³, and use temperatures up to 1600℃. Ideal for kilns, steel plants, and ceramic furnaces, these bricks deliver superior insulation, reducing energy costs and structural load. At Henan Jianhong Refractory Materials Co., Ltd., we offer a comprehensive range of insulation bricks designed to meet the varied demands of industrial furnaces, kilns, and metallurgical plants around the world.

High Alumina Insulation Brick standard size

Special sizes can be customized

High Alumina Insulation Bricks Bulk Density

Customized high alumina insulation bricks

Mullite Insulation Brick(JM) VS High Alumina Insulation Bricks (Poly Light)

Choose High Alumina (Poly Light) if you need a budget-friendly solution for backup linings or kilns where the atmosphere is stable. It offers excellent value.
Choose Mullite (JM Series) if you need direct flame contact, extremely high purity, or resistance to chemical attack.

Industrial Applications of High Alumina Insulation Bricks

General Industry: Backup insulation lining behind dense firebricks.

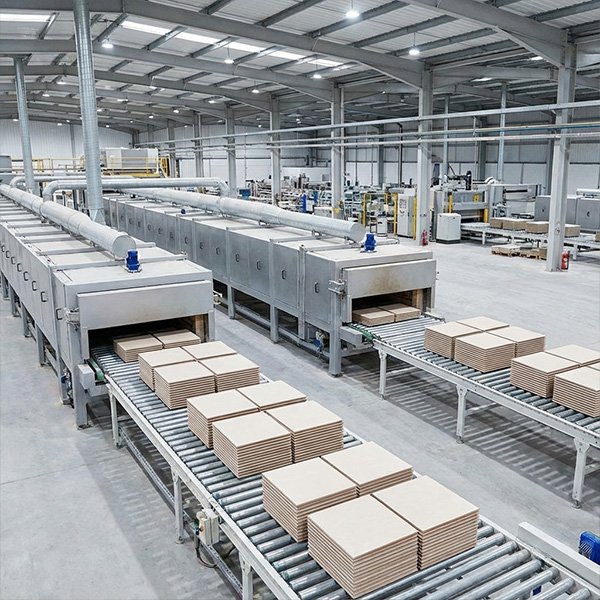

Ceramics: Tunnel kiln and roller kiln walls.

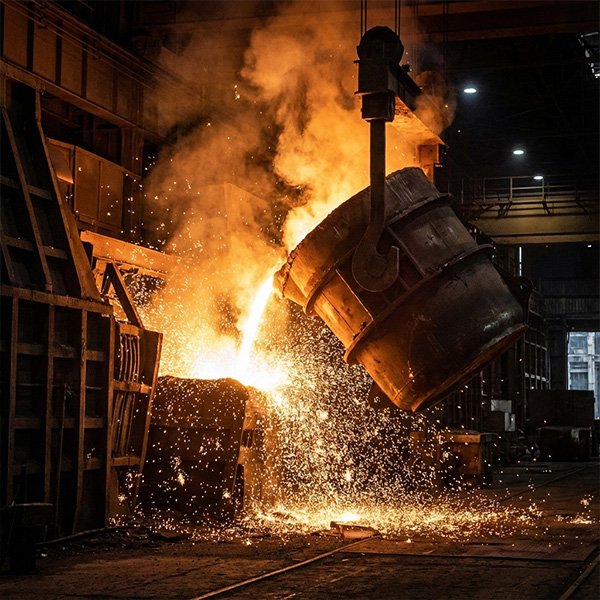

Steel: Hot blast stove insulation layers.

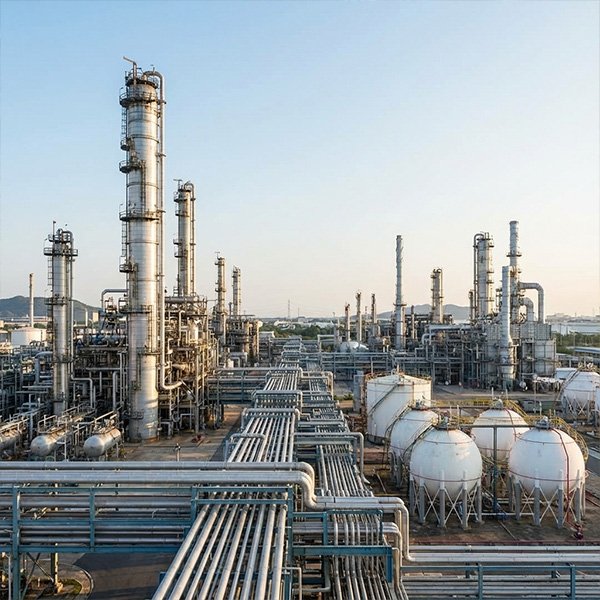

Petrochemical: Heater linings.

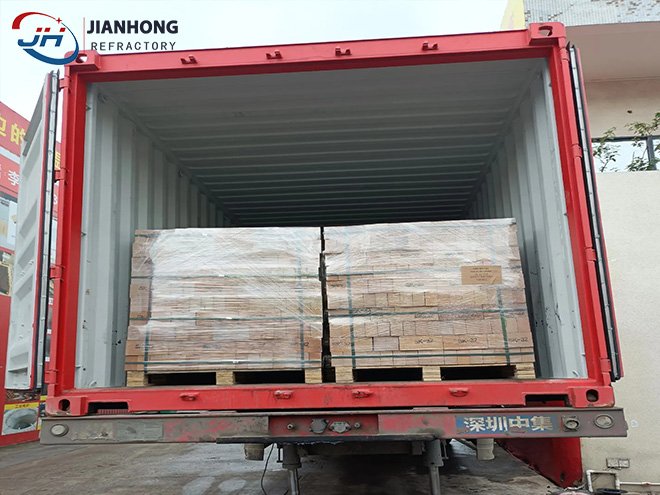

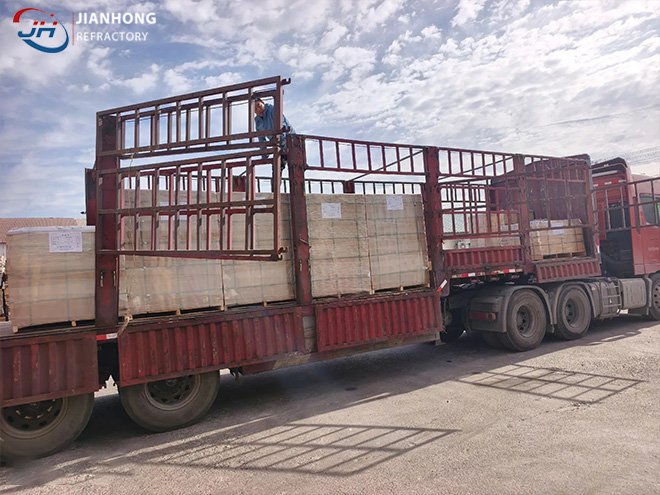

High Alumina Insulation Bricks Packing & Export Logistics

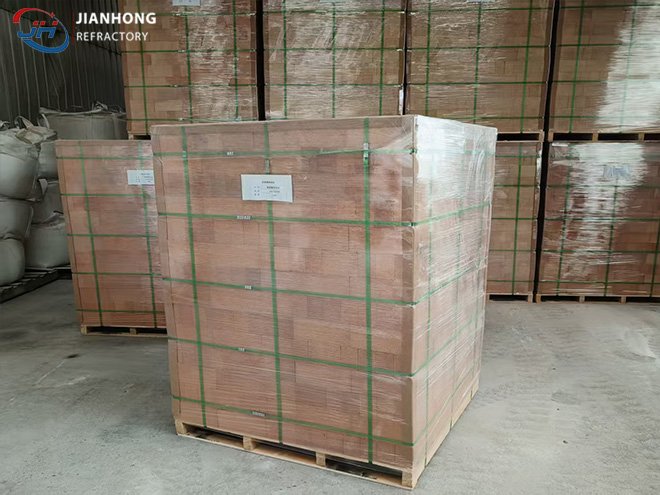

Robust seaworthy wooden pallet packaging with shrink wrap protection ensures zero damage during transit. Efficient container loading and logistics guarantee timely global delivery.
